TagFlash ECU Programmer BENCH / OBD / BOOT / BDM / JTAG Mode Full Reading TCU (MICROEEROM)

Product Introduction:

TagFlash is a powerful ECU Programmer that enables the reading and programming of engine control units (ECUs) and transmission control units (TCUs) for various cars, trucks, motorcycles, Marine worldwide from Europe, USA, India, Asia, China etc.  It reads and writes EEPROM and flash memory of ECUs i.e Bosch, Marelli, Siemens, Ford, Delphi, Denso, Transtron, Delco, Continental,Motorola, Valeo, Siemens Continental etc. TagFlash read/write ECU in the mode of OBD, on Bench, Boot mode, BDM, and Jtag systems. Its versatility and broad compatibility make it a valuable tool for automotive technicians and enthusiasts.

Product Features:



Easy to install and use by anyone.

Time synchronization is no need.

Work in offline mode.

Reliable for checksum calculations.

Read/Write DCM2.7AP, DCM2.7, MD1CS018 (MD1CS018 possible: choose the chip type spc58 to read/write), sid208-sid209 read write on bench ok. dcm7.1b can read via obd ok . dcm6.2v read via obd no problem.



Product Highlights:


1. This new system developed with high-speed USB2.0 currently the fastest and safest production in the market.

2. It is easy to install and use by anyone.

3. The Driver will always be clickable, the options will not become gray.

4. Time synchronization is no need, it allows for some margin of error.

5. On bench mode, directly identify the chip type before reading/writing .

6. Stable to read / write eeprom & flash via OBD.

7. Checksum calculations: Reliable and Faster

8. Add speed limit off.

9. It is relatively up to date that the protocol is synchronized to the original tools.

10. It is not easy to damage the ecu. It can work directly if it can be written; if it cannot be written, it won't be possible from the beginning.

11.There is no need to restart the software when the software reports an error, and there is a direct reset function in the option.

12. Support working in offline mode.

13. Synchronize Agreements Until April 1st, 2023

14. Stability/Comprehensive: Yes

15. Own Servers in Multiple countries



Compatible Vehicles:


Car

Truck

Tractor/Marine

Motorbike

Read / Write ECU

Read /Write TCU (a part)



TagFlash is confirmed to read/write ECU on many ECU types such as:


DCM2.7AP yes

DCM2.7 yes

MD1CS018 Yes: choose the chip type spc58 to read/write

sid208-sid209 read write on bench ok.

dcm7.1b can read via obd ok

dcm6.2v read via obd no problem



TagFlash is not able to read/write:

Sim2k260 NO

DCM7.1AP No



Free Download TagFlash Software


*** Important Note ***


You MUST disable your anti-virus and firewall in order to download the software, driver and updates. Any active anti-virus will try to delete the files as it does not recognize the file as safe. They are safe but because of language issue it is often seen as a virus and it will delete your files. YOU MUST DISABLE YOUR ANTI-VIRUS AND FIREWALL or you will not be able to download the software properly.



TagFlash Compatible Operation System:

Windows XP 32 64 bit

Windows Vista 32 64 bit

Windows 7 32 64 bit

Windows 8

Windows10



TagFlash Update: Free update

Annual Subscription: No need



5/30V Car, Industrial vehicles, WP

Boot Mode C167,ST10

RS232 RS485

CAN BUS V2.0 50 Kb>10 Nkb

J1850 VPW PWM GM-FORD

BDM MPC5XX

BOOT MODE TRICORE

Auto setup Pull up K-ine 250,500,1000 ohm

Auto setup termination Can bus 0,60,120ohm

Master

Recovery mode

Checksum automatic

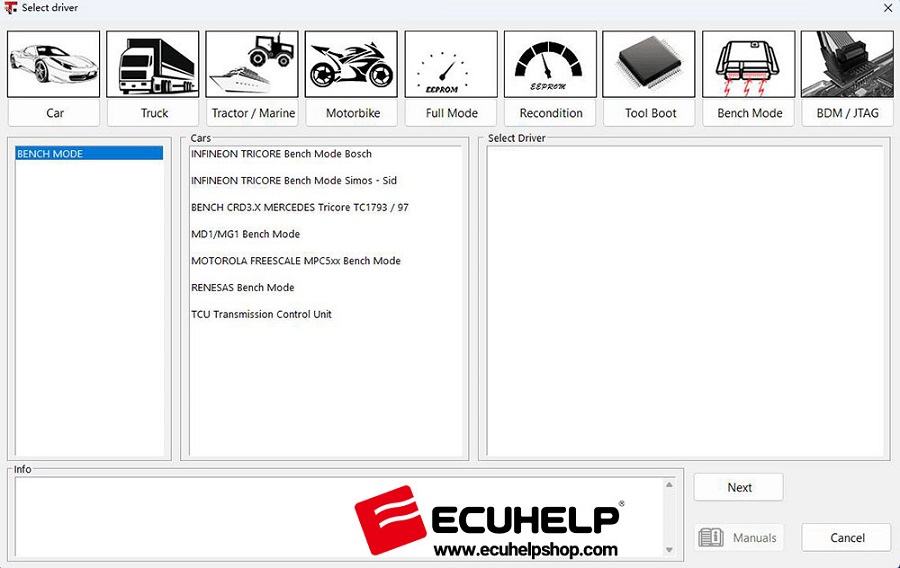

Look at the screen of TagFlash Software:

Available with options: Car, Truck, Tractor/Marine, Motorbike, Full Mode, Recondition, Tool Boot, Bench Mode,BDM/JTAG.

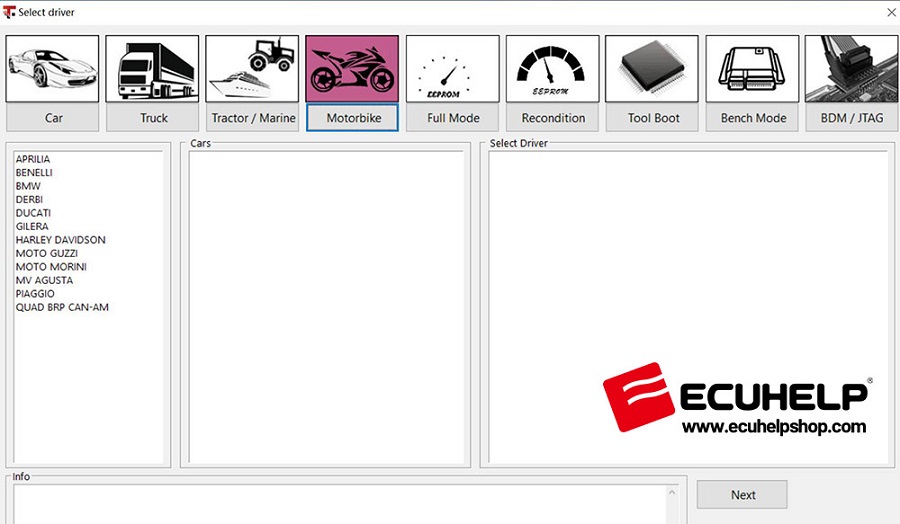

TagFlash Motorbike ECU List:

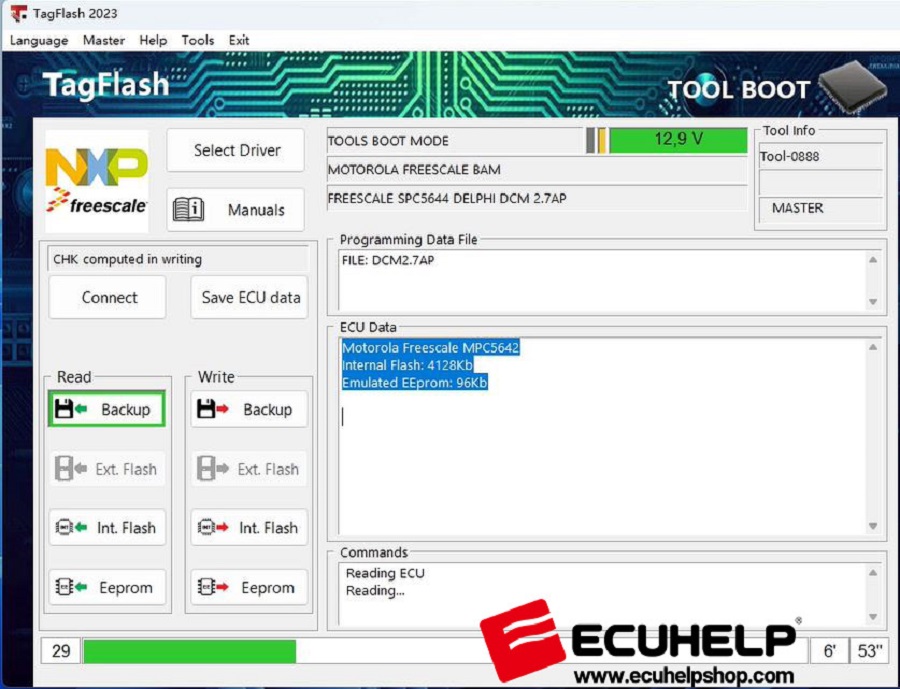

Reading DCM2.7AP:


FAQs


Q: I can install in same pc.. Together with Kt200? Or we need Kt200 uninstall..?

A: Yes, you can install both TagFlash and KT200 in same PC, but need to switch the driver.



Q: Does TagFlash support online VR reading/writing?

A: Sorry, not support.



Q: Does TagFlash offline mode need one extra offline dongle？

A: yes, it needs.



Q: Will TagFlash be connected to the computer when installing the driver?

A: yes, it needs.
